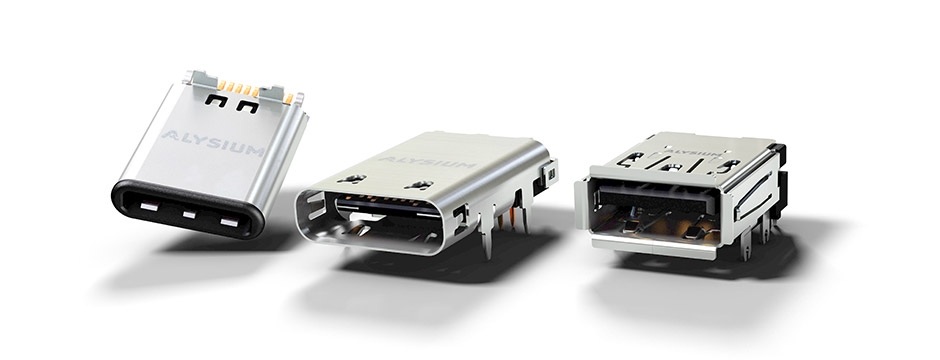

USB Product Family

Alysium offers a wide variety of USB connectors, to best fulfil your requirements.
We also offer USB assemblies with special emphasis on the Industrial Machine Vision market requirements.

  • USB 2.0 Plugs (A/B, mini, micro)
  • USB 2.0 Receptacles  (A/B, mini, micro)
  • USB 3.0 Plugs (A/B, micro)
  • USB 3.0 Receptacles (A/B, micro)
  • USB 3.1 Receptacles (A, Type C)
  • USB 3.1 Plugs (Type C)

Roll over to see Product Attributes and Benefits.

Power Over Cable
Smaller Plug Size

Part No: Description: Technical Drawing 3D Step File
A46-4033 USB A 3.0 Receptacle, horizontal type PDF
A46-8572 USB MicroB 3.0 Receptacle, vertical type PDF ZIP (after Registration)
A46-8571 USB MicroB 3.0 Receptacle, horizontal type PDF ZIP (after Registration)
A46-4825 USB Type C Receptacle Hybrid, PCB Mount Type with Rear Masking Sheet (1.0mm Thickness) || (800pcs/reel) PDF ZIP (after Registration)
A46-2245 USB A 3.1 Receptacle, horizontal type PDF ZIP (after Registration)
A46-4835 USB 3.1 Type C Receptacle, vertical Type || (250pcs/reel) PDF ZIP (after Registration)
A46-4827 USB Type C Receptacle Hybrid, PCB Mount Type w/o Rear Masking Sheet (1.6mm Thickness) PDF ZIP (after Registration)
A46-4826 USB Type C Receptacle Hybrid, PCB Mount Type w/o Rear Masking Sheet (1.0mm Thickness) || (800pcs/reel) PDF
